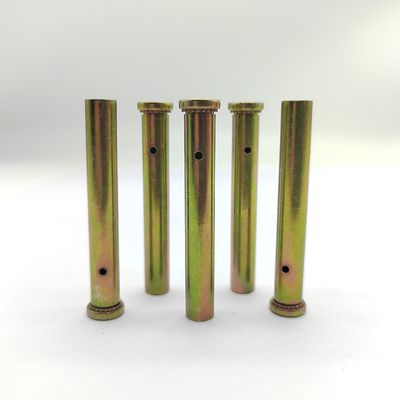

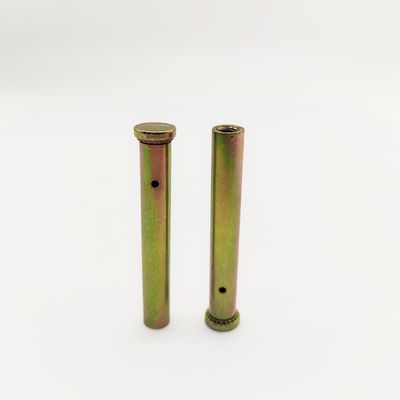

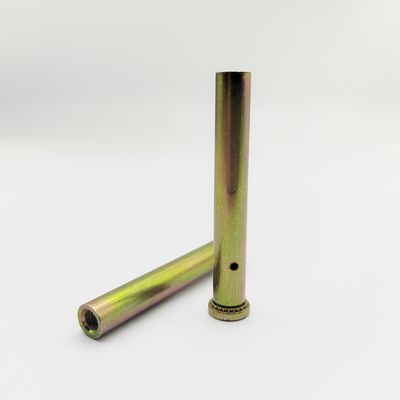

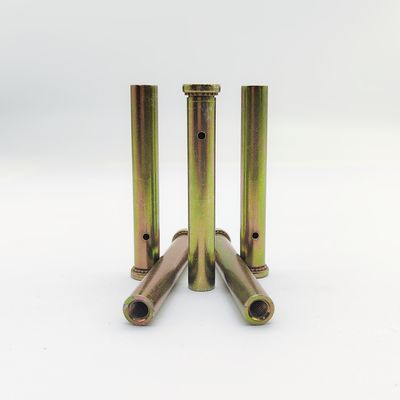

Stainless Steel Blind Hole Rivet Nut Column M6-M12 Yellow Zinc Plated
Dettagli:
| Luogo di origine: | Cina |
| Marca: | guanbiao |
| Certificazione: | ISO9001 |
| Numero di modello: | Personalizzabile |
| Documento: | guanbiao hardware PPT(new)P...DF.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 50000 |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Sacchetto di plastica + cartone + pallet |
| Tempi di consegna: | 15-20 giorni di lavoro |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 5000000 |
|
Informazioni dettagliate |
|||
| applicazione del prodotto: | Attrezzatura pesante | Stile testa: | Piatto |
|---|---|---|---|
| Tempi di consegna: | 15 ~ 20 giorni lavorativi | Finsh: | Ploting di zinco giallo ** (finitura liscia, cromate tri-valente) |
| Metodo di installazione: | Avvincente | Materiale: | Acciaio inossidabile |
| Tollerante: | +/- 0,05 mm | Dimensione: | Possiamo personalizzare la tua dimensione |
| Spessore del pannello: | 3,0 - 8,0 mm | ||
| Evidenziare: | stainless steel blind hole rivet nut,M6-M12 zinc plated rivet nut,yellow zinc plated steel rivet |
||
Descrizione di prodotto
Heavy Duty Long Blind Hole Rivet Nut Column - Serrated - Yellow Zinc Plated - M6 to M12 - for Thick Plate Applications
Product Specifications
| Attribute | Value |
|---|---|
| Product Application | Heavy Equipment |
| Head Style | Flat |
| Lead Time | 15~20 working days |
| Finish | Yellow Zinc Plating (Smooth Finish, Tri-valent Chromate) |
| Installation Method | Riveting |
| Material | Stainless Steel |
| Tolerance | +/- 0.05mm |
| Dimension | We Can Customize to your dimension |
| Panel Thickness | 3.0 - 8.0 mm |
Product Description
Long-length blind hole rivet nut columns for thicker materials. Stainless steel with yellow zinc plating, deep serrations. M6-M12 sizes. For heavy equipment, transportation, & energy. Custom specs.
Designed for demanding applications requiring penetration through thicker materials or higher strength, our Heavy-Duty Blind Hole Rivet Nut Columns feature a reinforced design. They incorporate deeper serrations under the 90° flat head for maximum anti-rotation performance in high-vibration environments.
Technical Specifications
| Head Type | 90° Flat Head with Reinforced Serrated Knurl |
| Head Diameter (D) | M6: 12.0mm; M8: 15.0mm; M10: 18.0mm; M12: 22.0mm |
| Shank Diameter | M6, M8, M10, M12 |
| Total Length (L) | M6: 20-40mm; M8: 25-50mm; M10: 30-60mm; M12: 40-80mm (Extended Range) |
| Blind Hole Depth | ≈65-70% of Total Length (L) |
| Thread Depth (T) | ≈55-60% of Total Length (L) (Non-Full Thread Design) |
| Material | A2-80 or A4-80 (316) Stainless Steel (Optional) |
| Surface Treatment | Yellow Zinc Plating (Smooth Finish, Tri-valent Chromate) |
| Installation Force | M8: 20-25 kN; M10: 30-38 kN |
| Torque-Out Resistance | M8: ≥20 Nm; M10: ≥30 Nm |
| Panel Thickness | 3.0 - 8.0 mm |
| Customization | Custom lengths, materials |
Primary Uses & Applications
- Heavy Equipment: Constructing frames, access panels, and hydraulic component mounts on agricultural, mining, and construction machinery.
- Transportation: Securing seats, interior panels, and equipment in buses, railcars, and trailers using thicker gauge metals.
- Renewable Energy: Assembling inverter housings, solar panel mounting structures, and wind turbine internal components.
- Power Distribution: Mounting heavy electrical components and busbars within large power distribution enclosures and switchgear.
- Welded Structures: Adding adjustable leveling points or attachment points to welded frames and supports.
How to Use
- Hole Preparation: The hole must be drilled to a tight tolerance. Deburr thoroughly to ensure the deep serrations can bite cleanly into the material. For thick panels, ensure hole perpendicularity.
- Tool Setup: These high-strength, long units require a high-force hydraulic pressing tool. Confirm the tool's capacity and stroke length exceed the required installation force and length.
- Installation: Position the nut column in the hole. The pressing ram must apply force evenly to the entire end surface of the column. Apply force steadily until a clear "bottoming" feel is achieved.
- Validation: For critical applications, conduct a torque-test on a sample installation to verify it meets the specified torque-out value.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience
- Precise production equipment with all imported equipment from Taiwan
- Complete management system with multiple strict monitoring for each batch
- Dedicated account management for seamless collaboration
Support and Services
Our team provides comprehensive support including product selection advice, installation guidance, and troubleshooting assistance. We offer detailed specifications, material safety data sheets, and maintenance tips to ensure optimal performance.
Packing and Shipping
Products are securely packaged in moisture-resistant bags within sturdy boxes. Larger orders are palletized and shrink-wrapped. We use reliable courier services with tracking information provided for all shipments.
Our factory accepts customized drawings. Contact us to discuss specific requirements or certifications needed for your application.
