Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Dettagli:
| Luogo di origine: | Cina |
| Marca: | guanbiao |
| Certificazione: | ISO, GB, BS, DIN, ANSI,JIS |
| Numero di modello: | 4.9*10.5 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 50000 pezzi |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Cartone +pallets della piccola scatola +outer del sacchetto di plastica 1 |
| Tempi di consegna: | 10-15 giorni lavorativi |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 100000 pezzi al giorno |
|
Informazioni dettagliate |
|||
| Materiale: | Acciaio inossidabile: 302.304.316 | Processo di produzione: | Intestazione fredda, pezzo fucinato freddo |
|---|---|---|---|
| Finitura/trattamento superfici: | lucidatura, passività | Dimensione: | 4.9*10.5 |
| Tipo di filo: | filo della macchina | Pacco: | Piccola scatola, piccola scatola colorata, cartone da esportazione, e mettere su pallet di legno for |
| Non sposato: | 3.7g | ||
Descrizione di prodotto

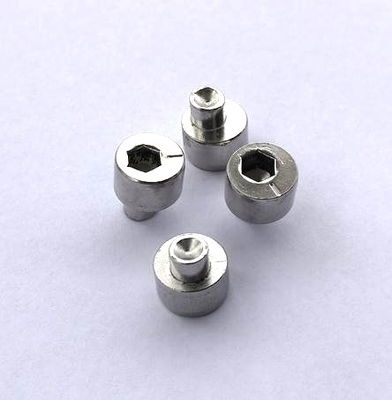

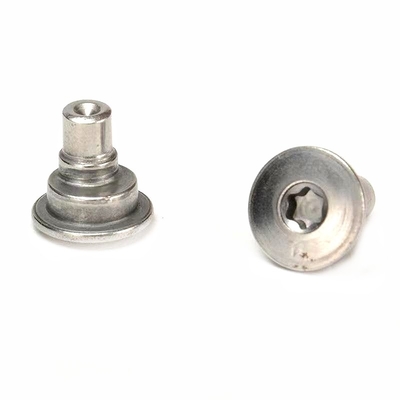

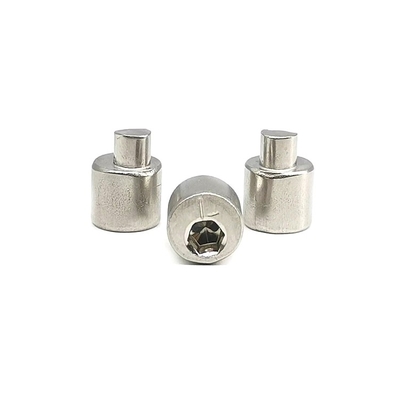

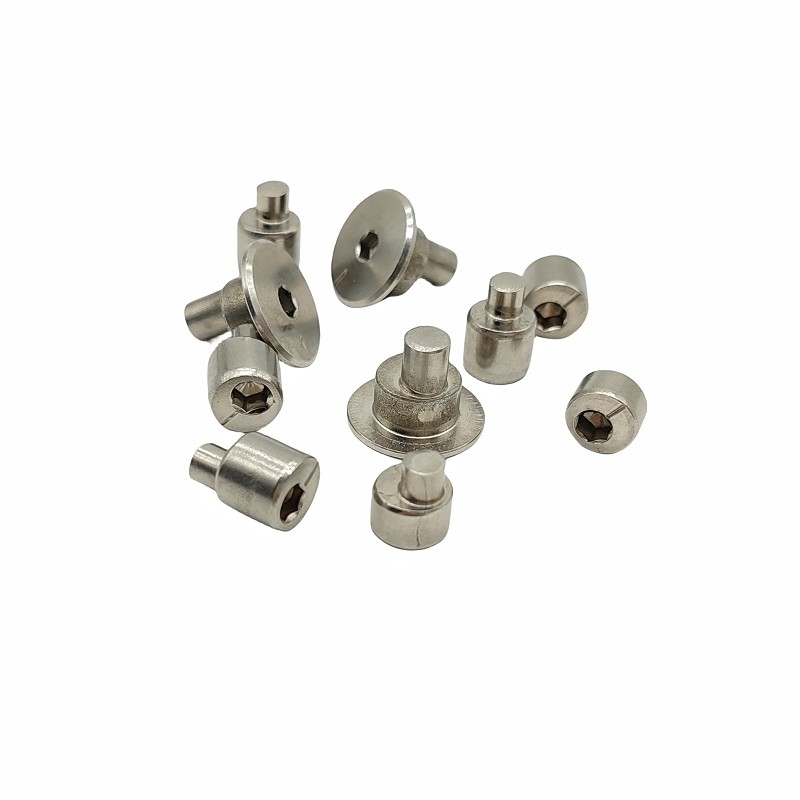

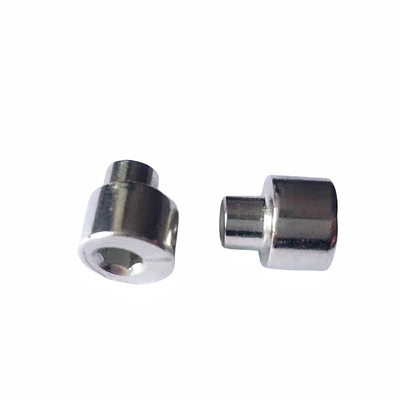

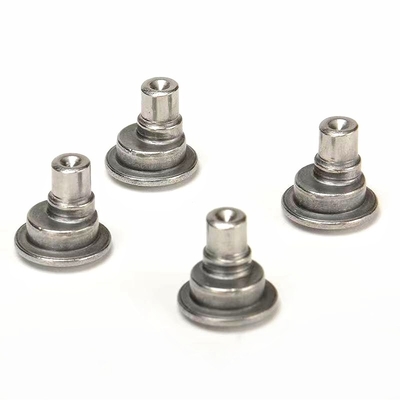

Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Precision Eccentric Locking Shafts for Smart Locks & Sliding Windows
We manufacture high-performance cold-formed eccentric locking shafts designed for smart locks and thermal break sliding windows, ensuring secure and smooth operation. Made from carbon steel (high strength) or stainless steel (corrosion-resistant), our shafts feature precise eccentricity for reliable locking mechanisms. We support full customization based on your drawings or samples, ensuring perfect compatibility with your hardware systems.
✅ Key Features:
✔ Optimized for Smart Locks & Windows – Ensures smooth engagement and long-term durability.
✔ Cold Forming Technology – Enhances mechanical strength (+25% vs. machined shafts).
✔ Corrosion-Resistant Options – Stainless steel (304/316) for outdoor & humid environments.
✔ Custom Eccentricity & Dimensions – Tailored to fit your lock or window mechanism.
✔ Fast Prototyping – Samples ready in 10-15 days after drawing approval.
Product parameters
| Specification | Material Options | Surface Treatment | Remarks |
|---|---|---|---|
| Production Process | Cold Forming | – | Enhances structural integrity |
| Standard Diameter | 1.0mm – 20mm (±0.05mm) | Custom diameters available | |
| Length Range | 2.0mm – 300mm (±0.1mm) | Extended lengths on request | |
| Material Grades | • Carbon Steel: SC435/10B21/20MnB4 • Stainless Steel: 302/304/316 |
Other alloys (e.g., alloy steel) optional | |
| Hardness (HRC) | Carbon Steel: 28-32 Stainless: 20-25 |
Adjustable per application needs | |
| Surface Finish | – | Carbon Steel: • Zinc plating (8-12μm) • Black oxide • Phosphating • Electro-galvanizing Stainless Steel: • Passivation • Electro-polishing • Sandblasting |
RoHS compliant options available |
| Eccentricity Tolerance | ±0.03mm | – | Tighter tolerances achievable |
| Customization | Accept OEM drawings & samples | – | MOQ: 50,000 pcs Standard lead time: 30 days |
(Applications)
